Flying Stick

3D Printed Foam RC Airplane 120cm

17,27 $US
Paiement sécuriséStripePayPalVisaMastercardApple PayGoogle PayBLIKPrzelewy24

Partagez sur

Description

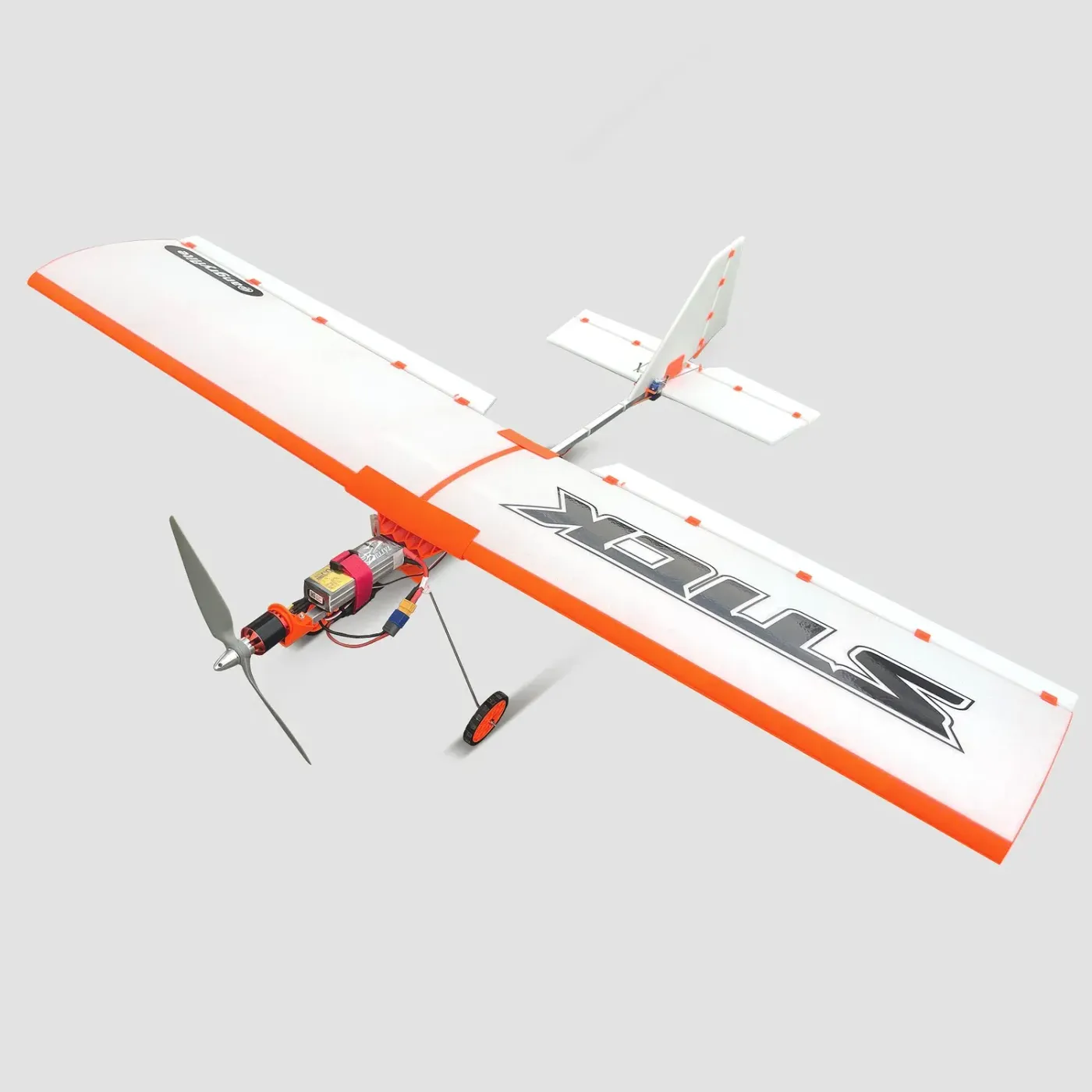

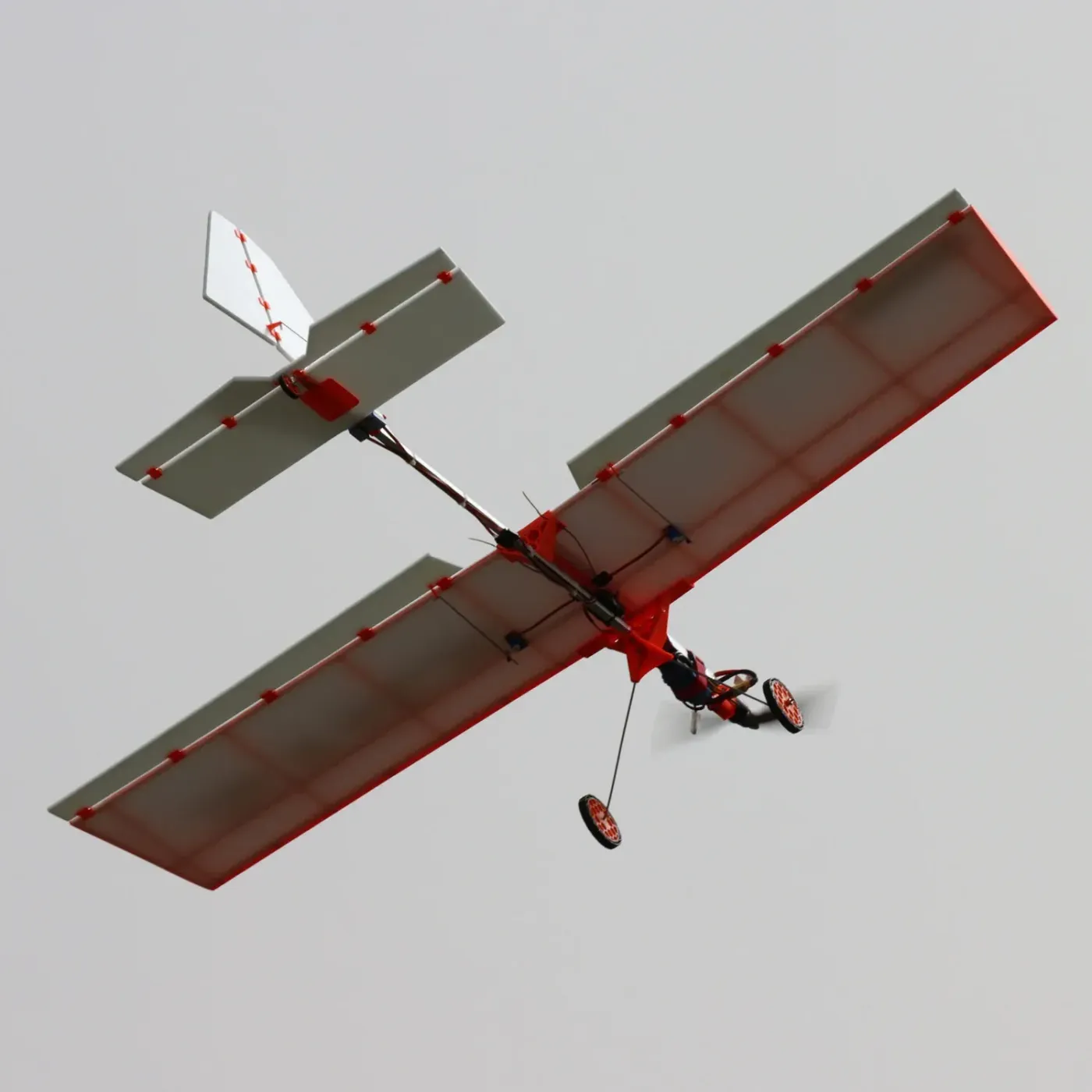

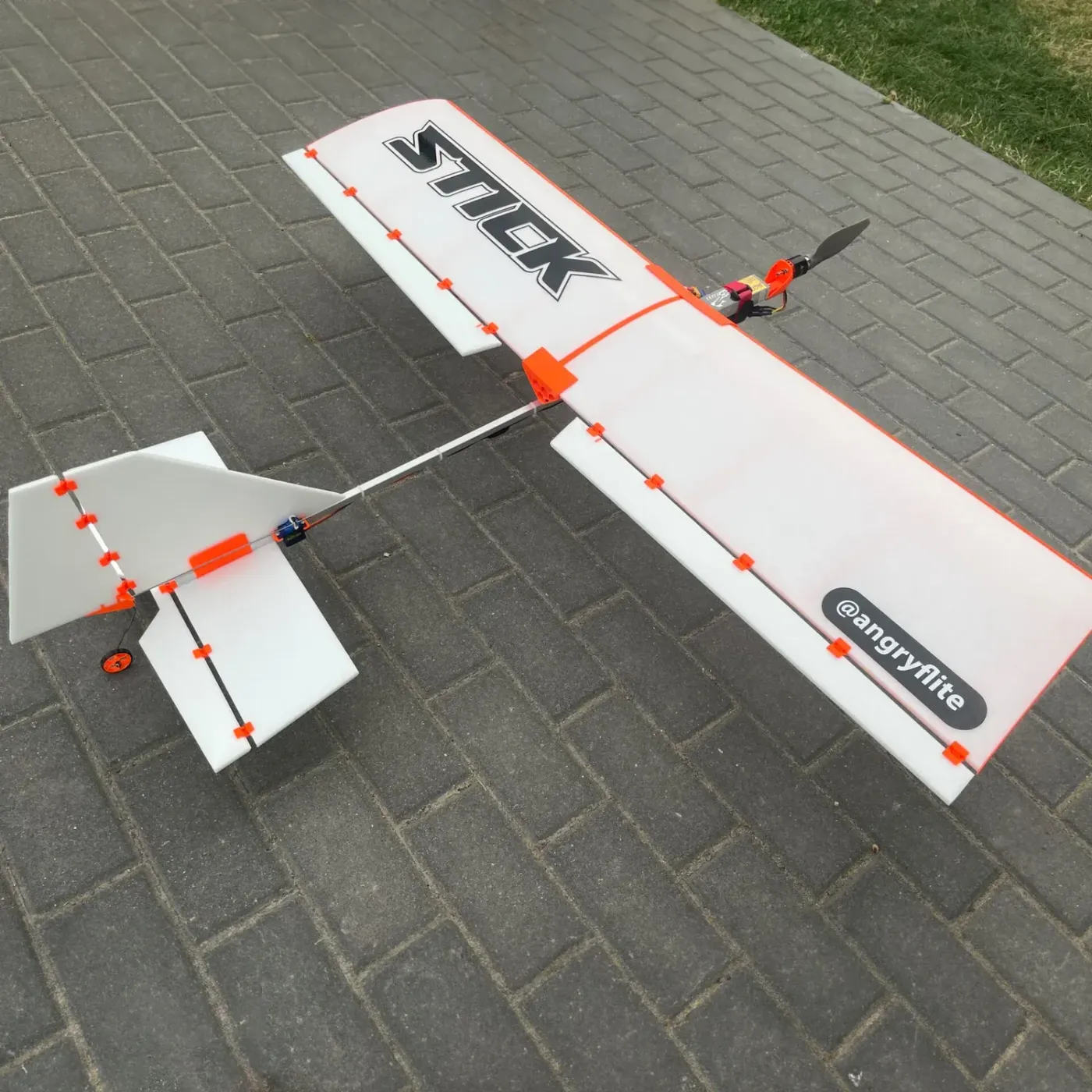

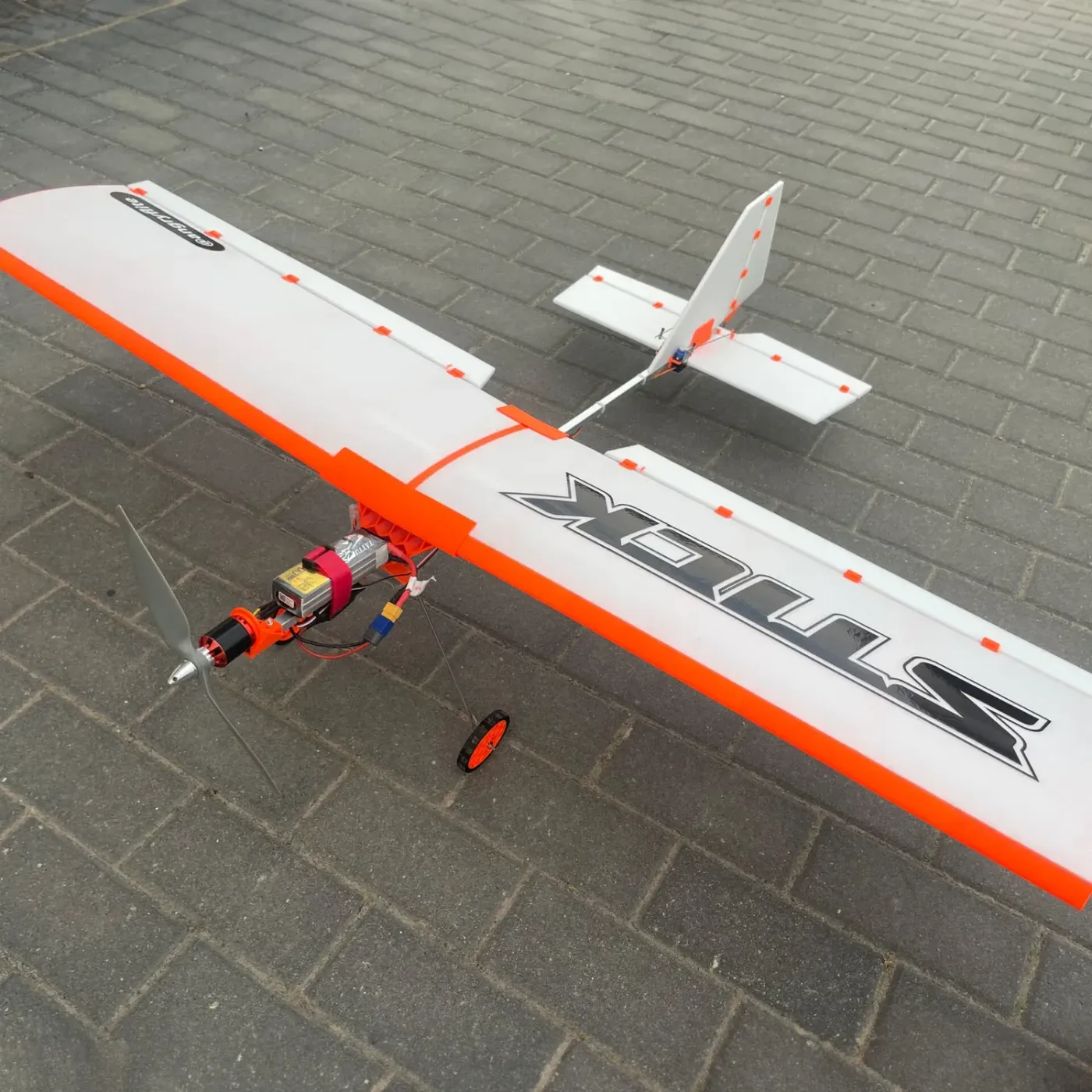

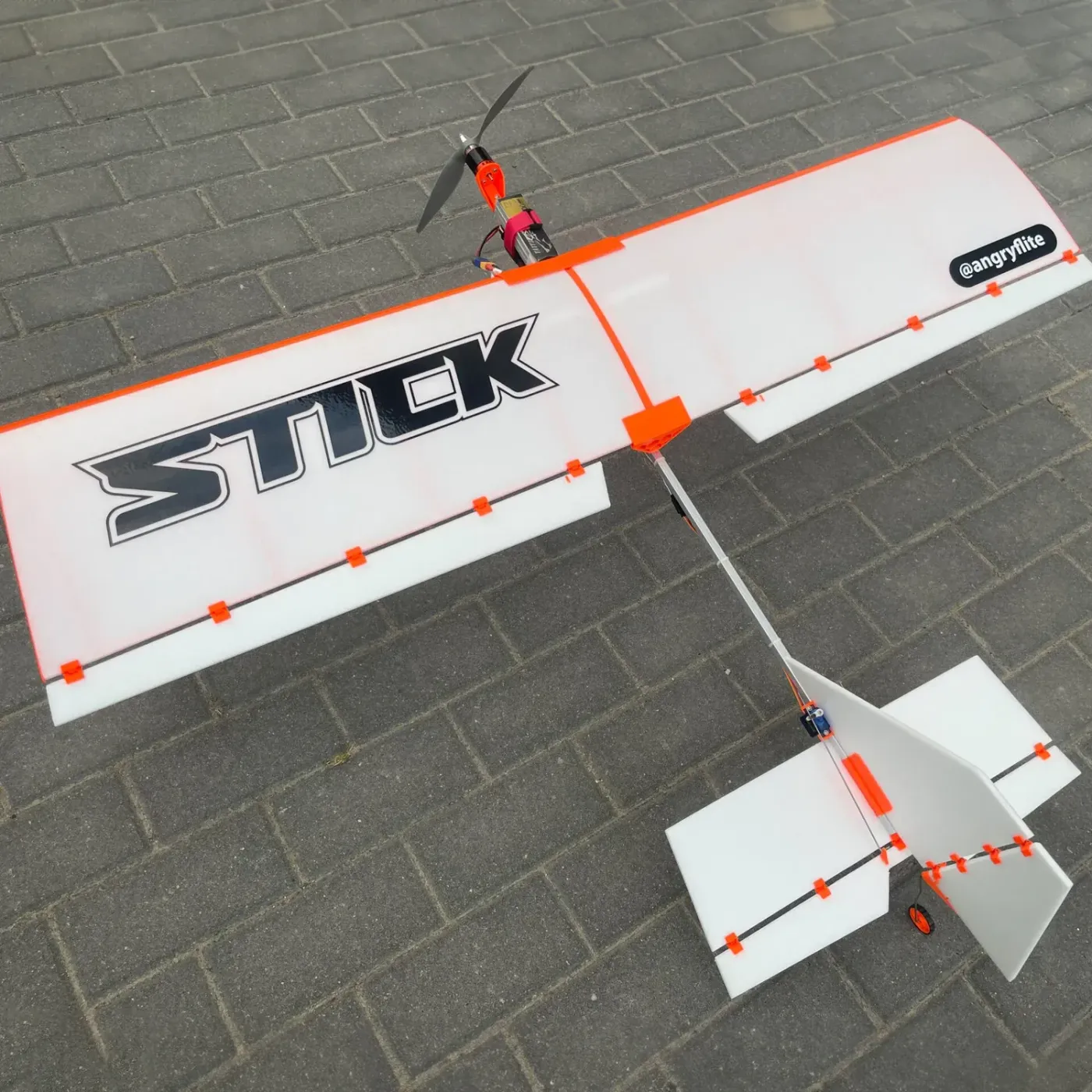

A true classic, back in a new edition. The Flying Stick is a hybrid 3D-printed + foam RC airplane with a 120 cm wingspan — quick, affordable and easy to build. A complete build, electronics included, should come in under €100.

The airframe combines 3D-printed parts with 3 mm XPS/Depron foam. All printed components use affordable PETG; ABS is recommended for the landing-gear mounts for extra durability. Most parts print support-free at 20% grid infill.

Specifications
Wingspan120 cm
Ready-to-fly weight~0.9 kg
MotorC2836-1120KV (example)
Propeller10×5
ESC30 A
Servos4× 9 g
Battery3S or 4S Li-Po
MaterialPETG (ABS landing-gear mounts)

What's in the download

  • STL files
  • Build manual

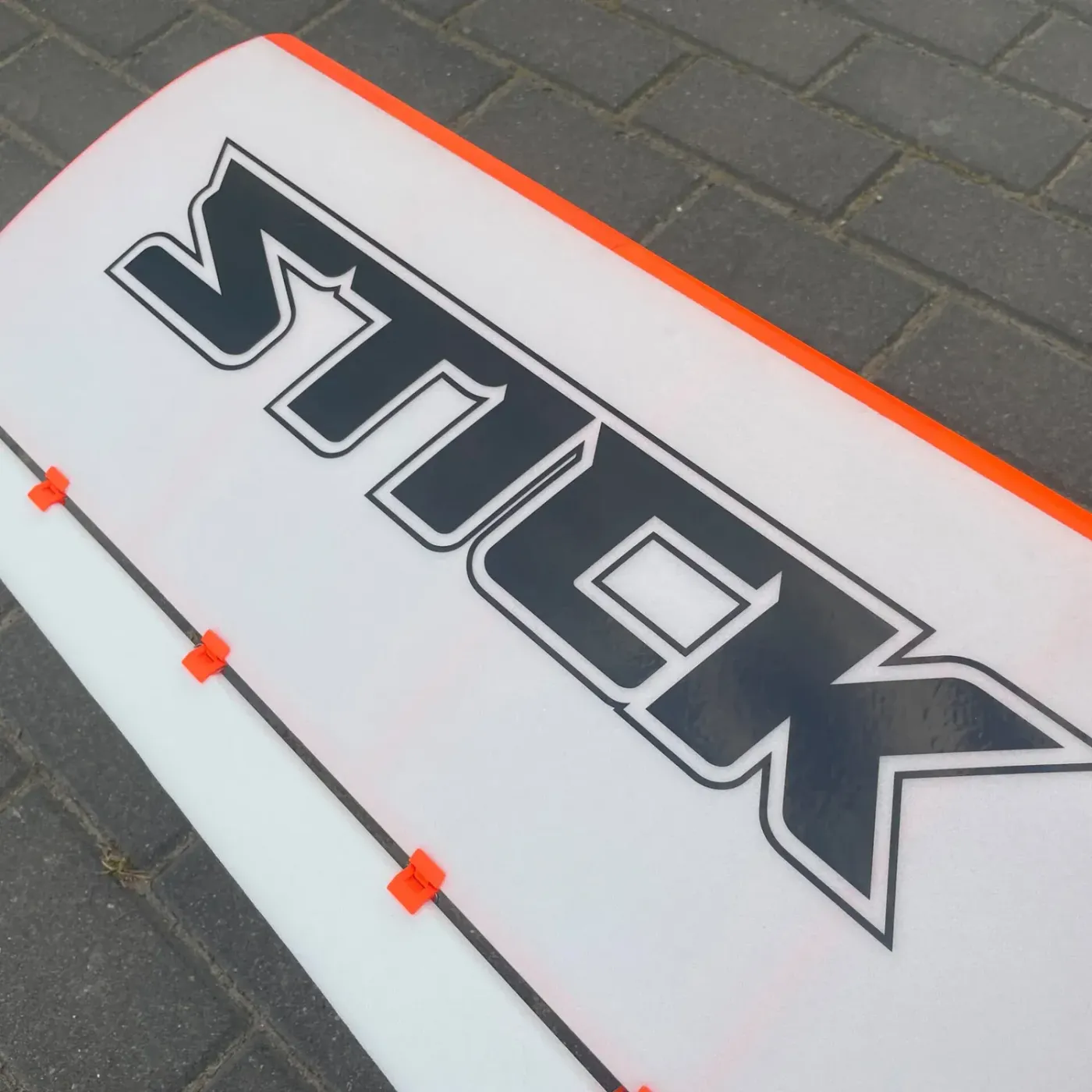

  • Sticker / decal designs
Ce qu'il vous faut pour construire et voler
PièceQtéAcheter sur :
XPS Depron — 3 mm sheets (min 60 cm long)—
10×10 mm aluminum / carbon tube1 pièce—
2.5 mm steel rod (landing gear)1 pièce
2 mm steel rod1 pièce
1.5 mm steel rod (pushers)1 pièce
0.8 mm steel rod (hinges)1 pièce
M3 × 12 mm screw + nut1 pièce
Landing-gear wheel collar — 2.6 x 7 x H4 mm2 pièces
Landing-gear wheel collar — 2.1 x 6 x H4 mm1 pièce
Motor — C2836-1120kv or similar (trainer)1 pièce
Propeller — 10 × 5 (for C2836-1120kv)1 pièce
ESC — 40 A1 pièce
Servos — 2.5 - 3 kg4 pièces
Li-Po battery — 3–4S (depends on motor; I use 2200 mAh)1 pièce

Ces pièces de montage ne sont pas vendues dans ma boutique — les liens renvoient vers des marketplaces externes (affiliation).
