AF D4 Bulldozer 1:14 RC
AF D4 Bulldozer 1:14 RC
AF D4 Bulldozer 1:14 RC
AF D4 Bulldozer 1:14 RC
AF D4 Bulldozer 1:14 RC
En stock

AF D4 Bulldozer 1:14 RC

32,39 $US
Paiement sécuriséStripePayPalVisaMastercardApple PayGoogle PayBLIKPrzelewy24

Partagez sur

Description

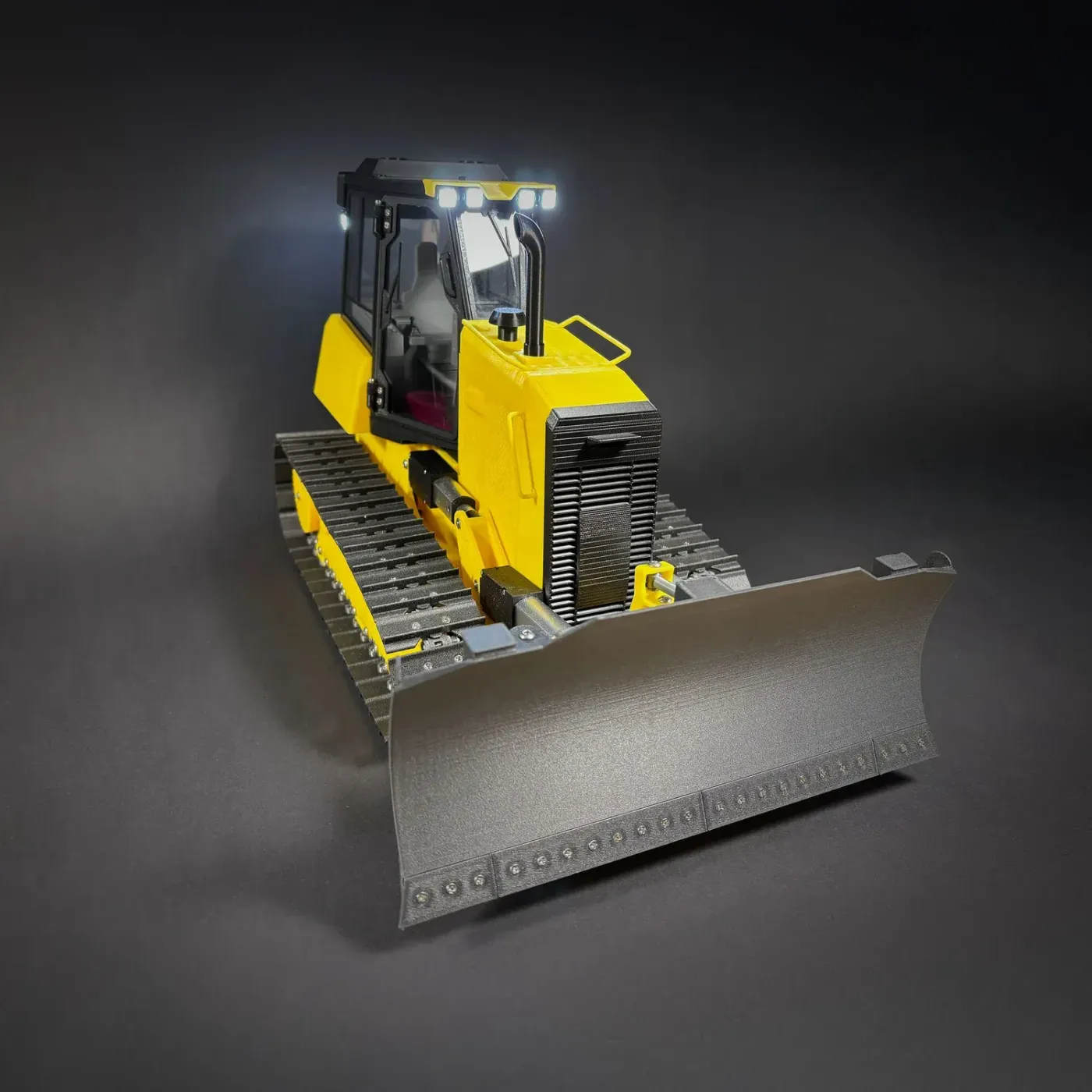

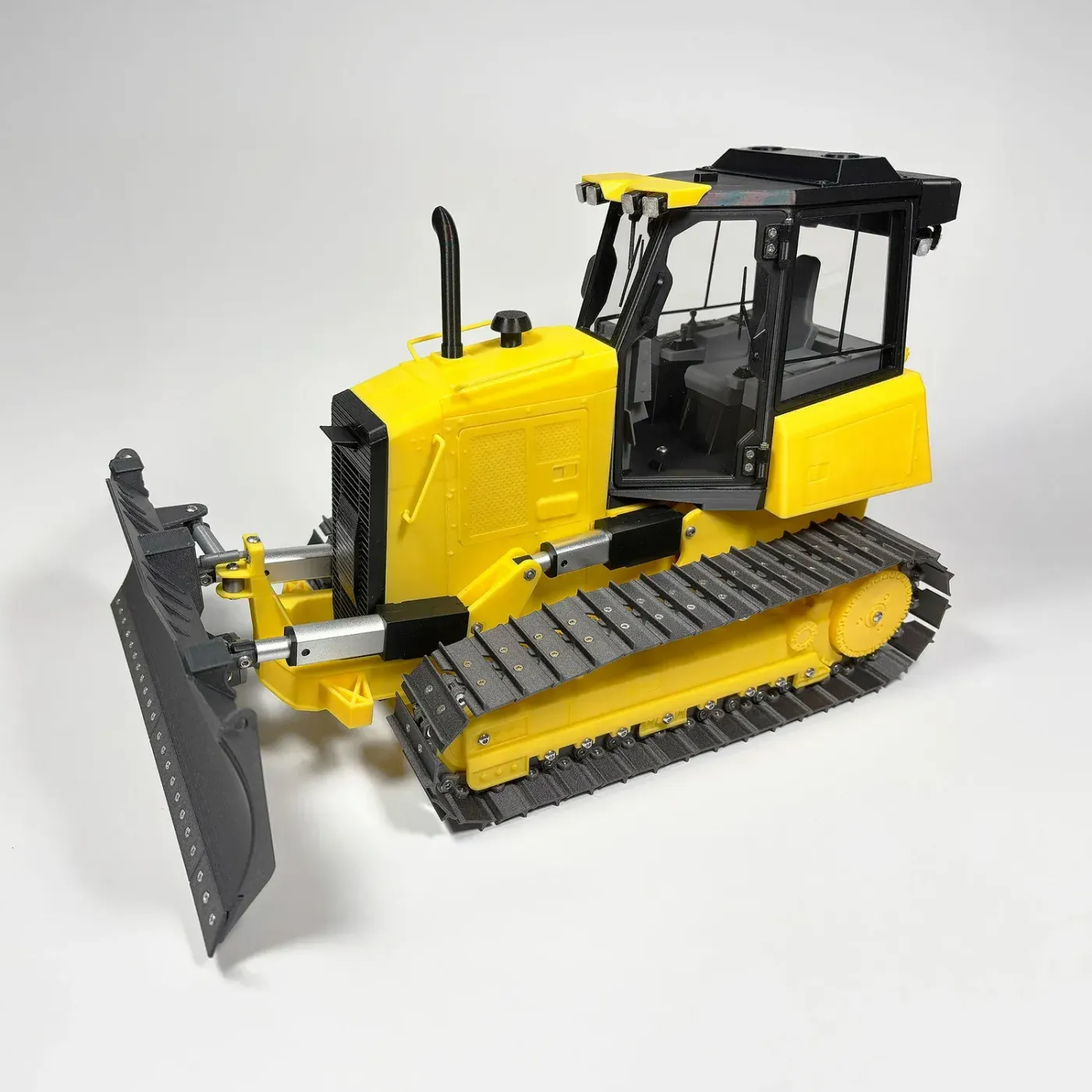

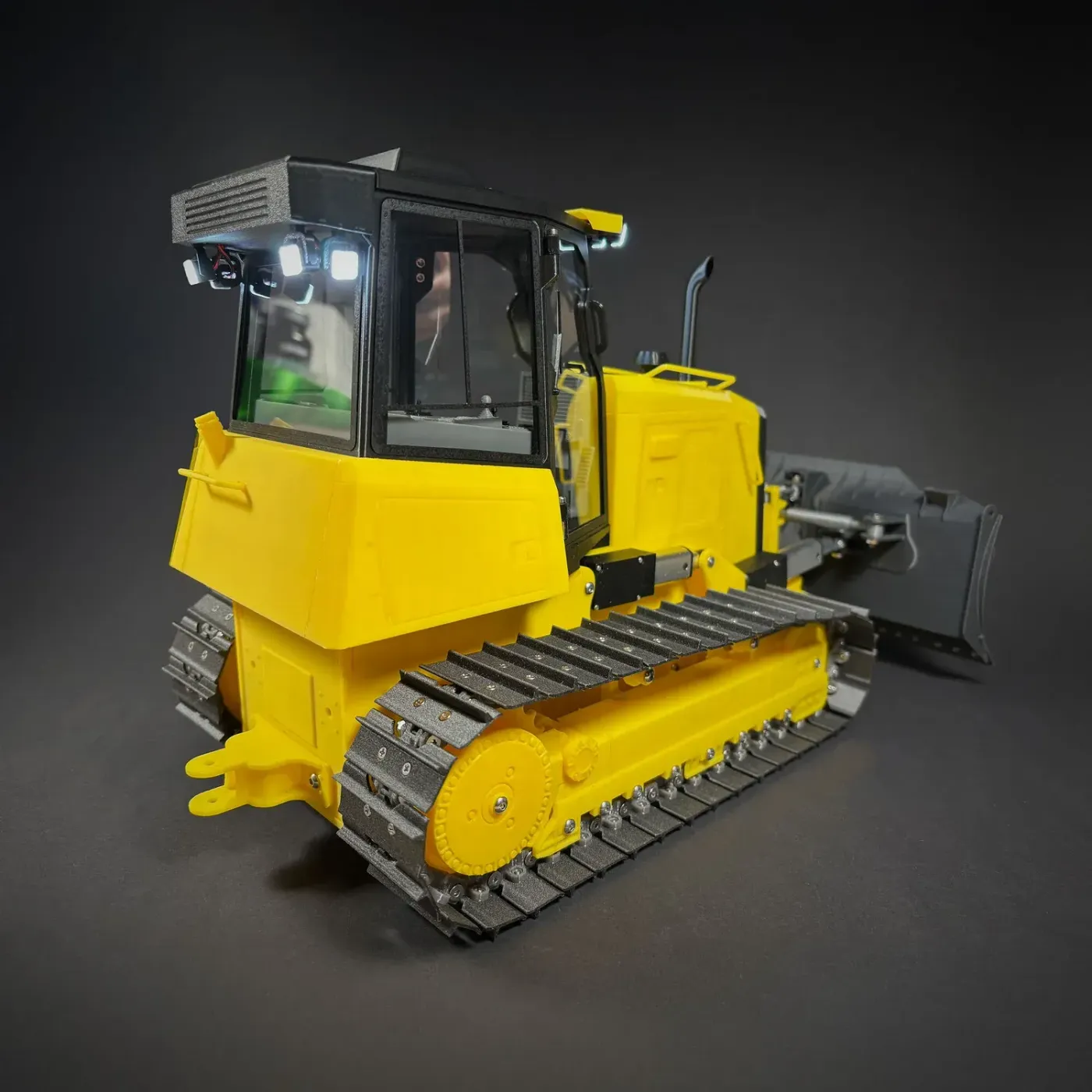

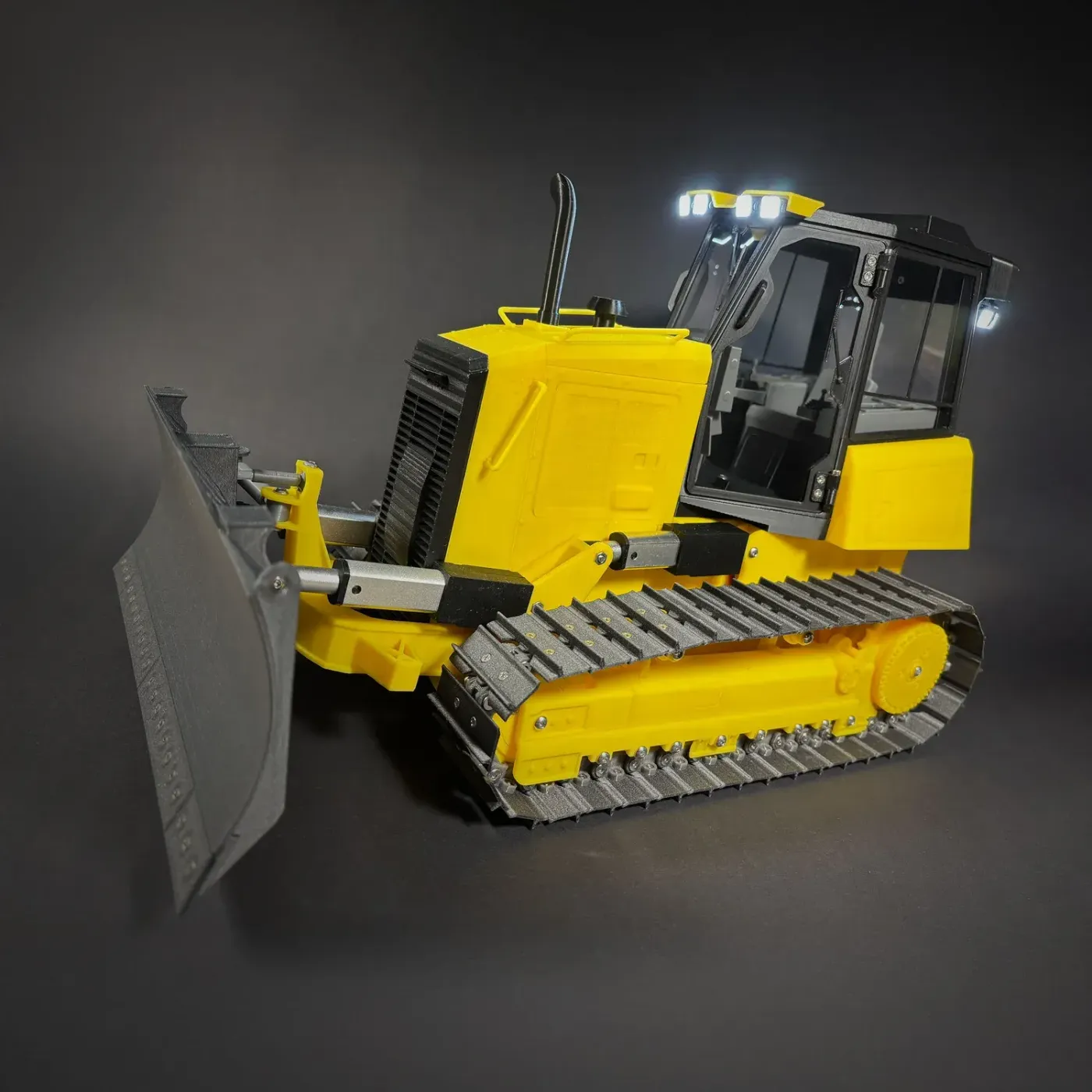

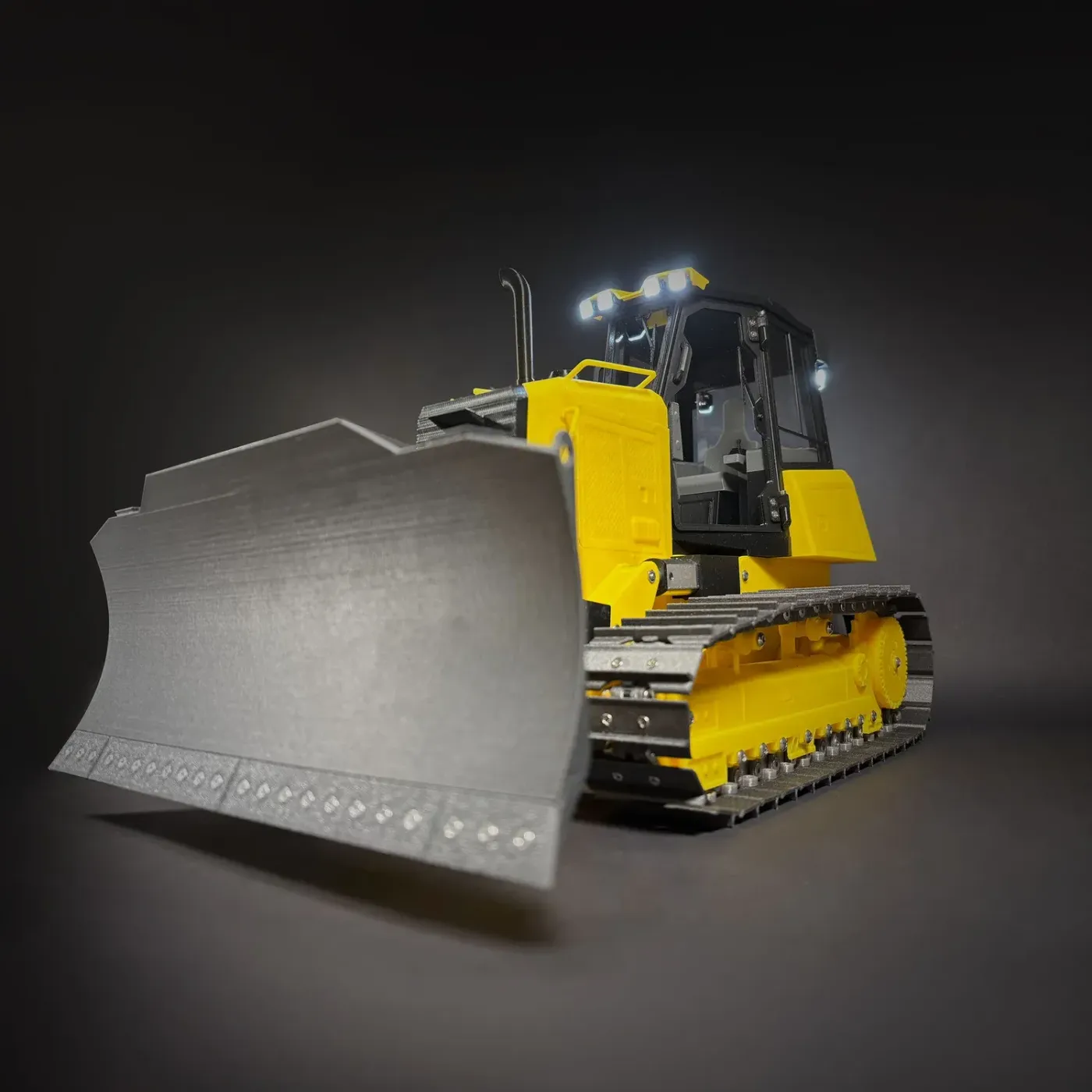

Bring heavy-duty construction power to your RC collection. This detailed 1:14 scale AF D4 RC bulldozer is inspired by the iconic CAT D4 and designed specifically for 3D printing. With full remote-control functionality — tracked drive and a moving blade — it is both a challenging and a rewarding build.

Most parts print support-free. The model is organized into clear assembly sections, and the download includes a calibration STL for a perfect fit — drop an MR128ZZ bearing into the test part; it should fit with slight resistance. Note: the tracks have adjustable tension — check the manual.

A full step-by-step build manual is available on our Build Manuals page.

Specifications
Scale1:14
DriveTracked · 2× geared motor
BladeServo-actuated
PrinterFDM · 0.4 mm nozzle
Min. bed20 × 20 × 20 cm
FilamentPLA or PETG
Layer height0.2 mm
Infill30%+
Walls3 or more
SupportsMost parts support-free

What's in the download

  • All STL files, organized by function
  • Detailed assembly guide
  • Complete hardware list (screws, electronics, mechanics)
Ce qu'il vous faut pour construire et voler
PièceQtéAcheter sur :
M2 x 4 mm screw DIN 965 (Countersunk Head)198 pièces
M2 x 12 mm screw DIN 9124 pièces
M2 x 14 mm screw DIN 9123 pièces
M3 x 6 mm screw DIN 9124 pièces
M3 x 6 mm screw ISO 106428 pièces
M3 x 8 mm screw DIN 9128 pièces
M3 x 10 mm screw DIN 91212 pièces
M3 x 12 mm screw DIN 9122 pièces
M3 x 14 mm screw DIN 91217 pièces
M3 x 16 mm screw DIN 9129 pièces
M3 x 16 mm screw ISO 1064279 pièces
M3 x 18 mm screw DIN 9122 pièces
M3 x 20 mm screw DIN 91223 pièces
M2 nut201 pièces
M3 nut154 pièces
4 x 1 mm magnet28 pièces
3 mm LED8 pièces
2835 SMD LED8 pièces
4010 fan1 pièce
MR128ZZ 12x8x3.5 mm bearing2 pièces
Linear actuator 21 mm stroke 50mms 12V2 pièces
Linear actuator 30 mm stroke 50mms 12V2 pièces
6 mm flange shaft coupling2 pièces
JGY370 55 rpm / 12V motor2 pièces
Brushed ESC ~30A6 pièces
Li-Po battery 2000 mah 3S1 pièce

Ces pièces de montage ne sont pas vendues dans ma boutique — les liens renvoient vers des marketplaces externes (affiliation).
